Palace of Assembly

Facade concept

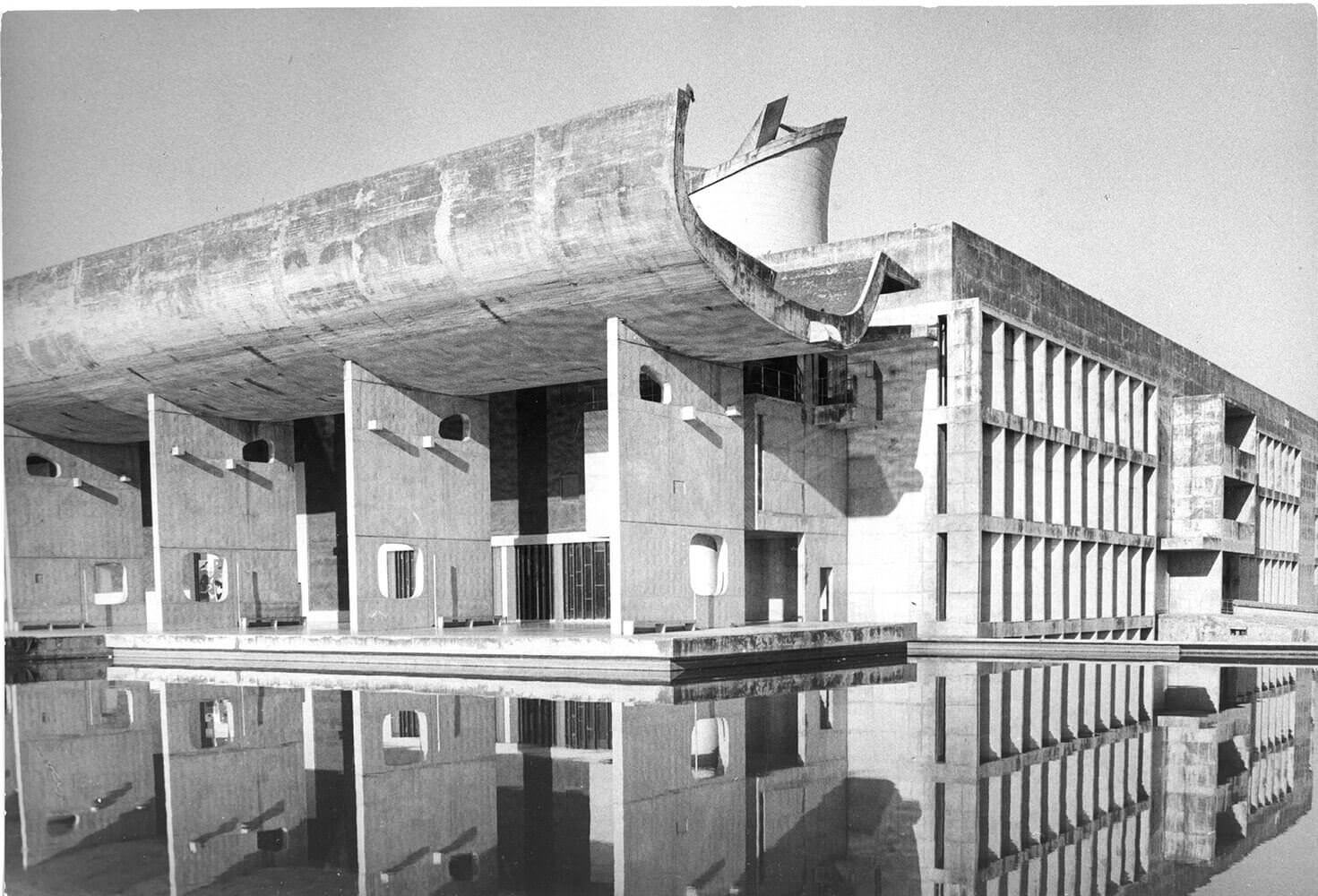

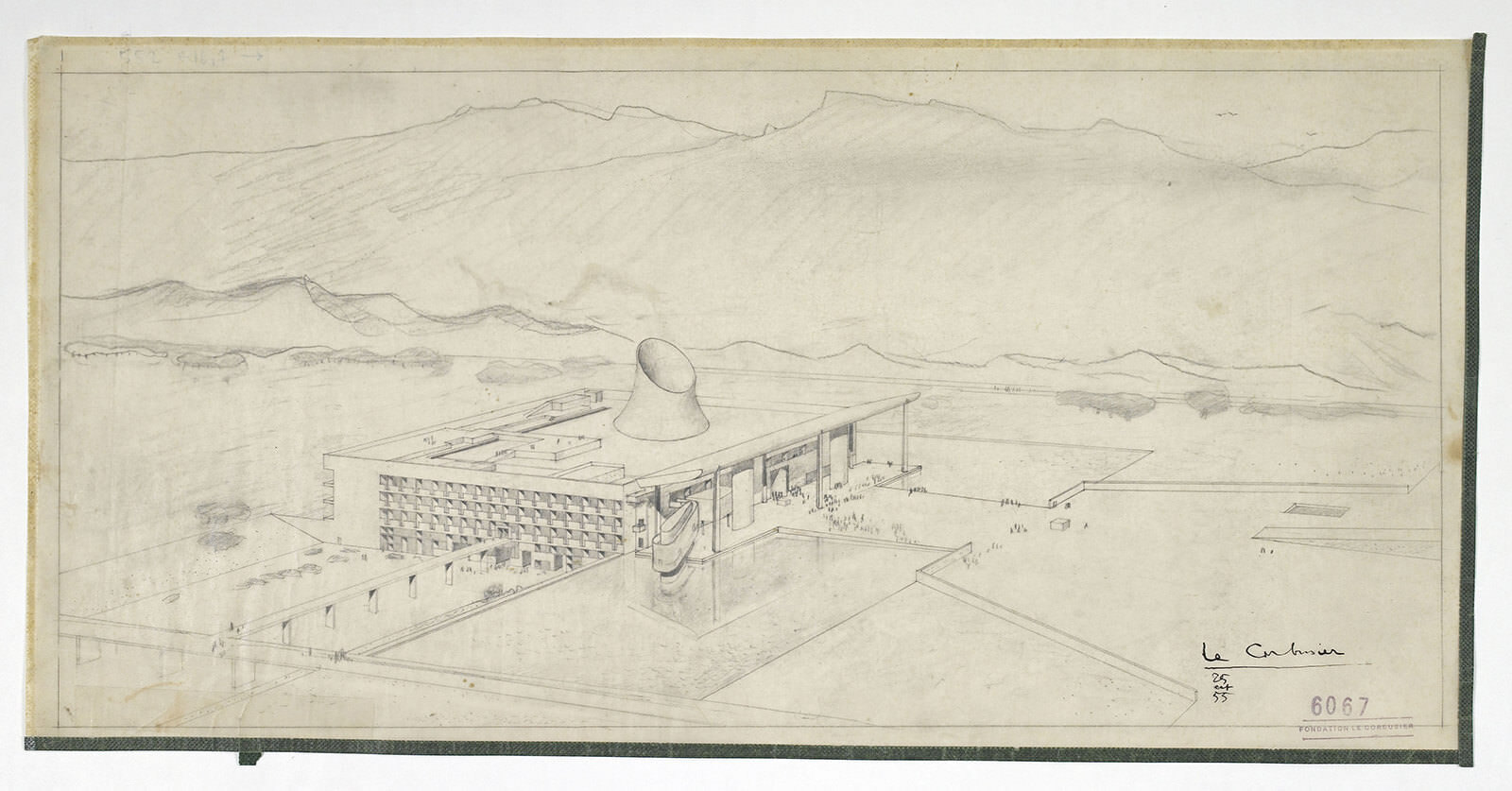

A monumental reinforced-concrete volume is cut by a vast ceremonial portico, deep brise-soleil, sculptural roof forms and a painted pivoting door. The exterior is composed as a civic instrument of shade, procession and symbolic assembly.

Envelope system and materials

The external wall is a thick civic edge rather than a planar curtain wall. Deep concrete frames, roof overhangs, recessed glazing and service/circulation zones build solar control into the primary structure.

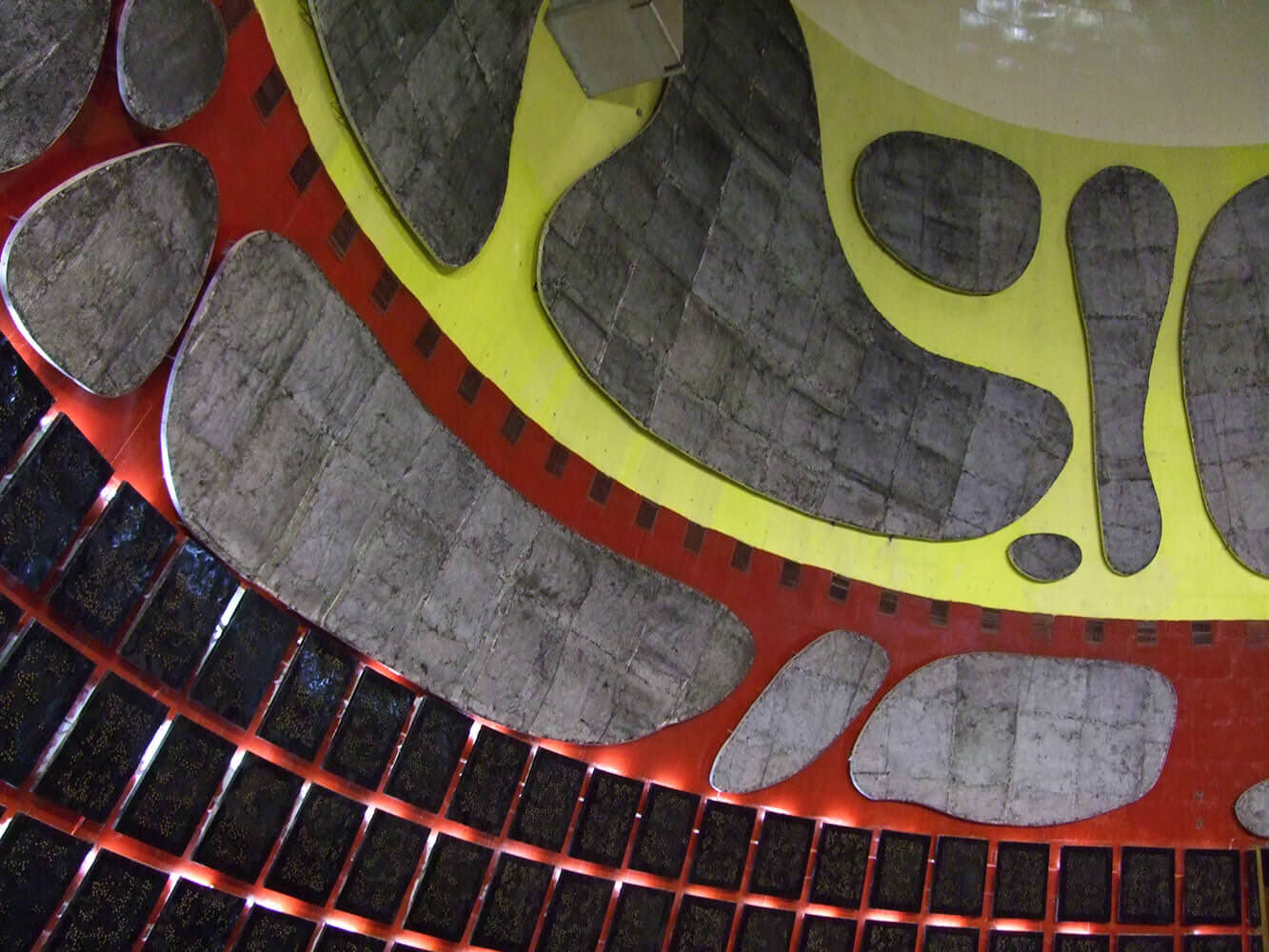

Exposed reinforced concrete (béton brut), painted steel/metal entrance elements, glazing, stone and concrete paving, internal colour and acoustic finishes.

Structure, climate and shading

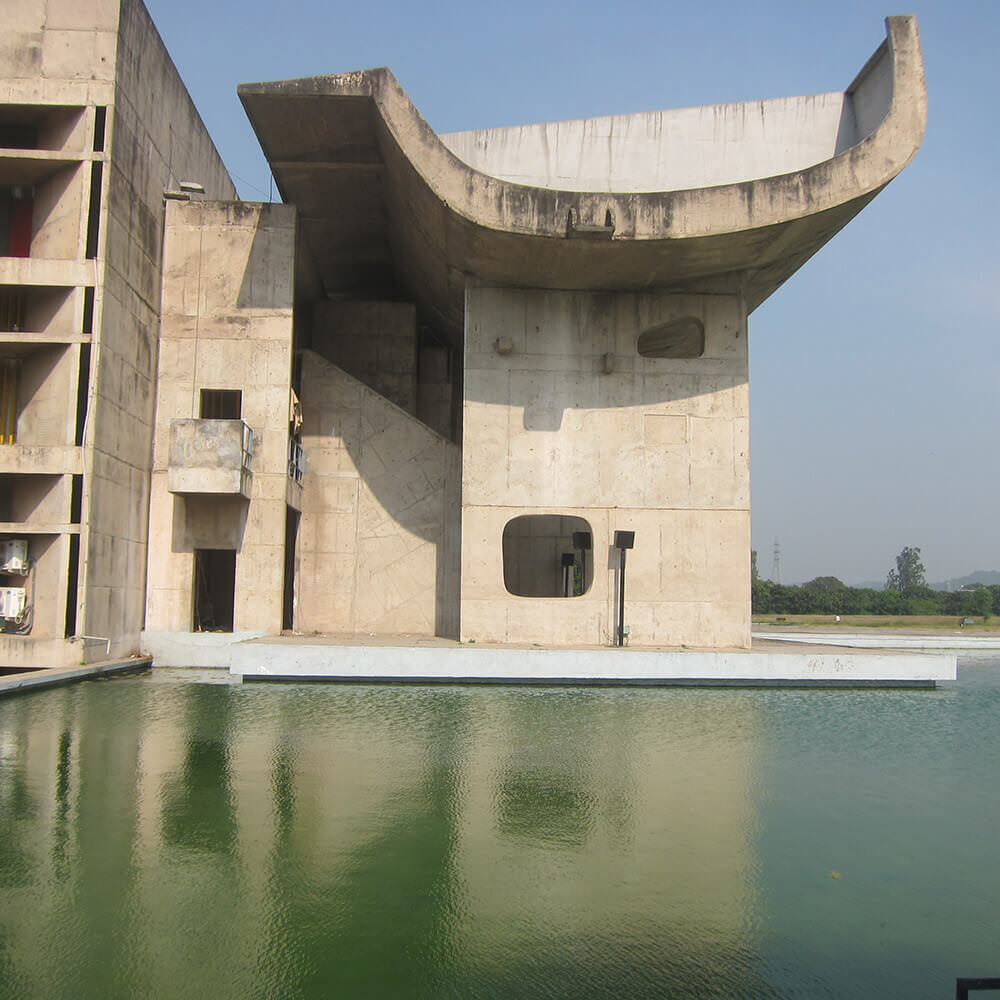

Structure. A reinforced-concrete frame and shell system accommodates the rectilinear perimeter, the hyperbolic assembly-chamber roof and the pyramidal council-chamber roof. Structure is deliberately legible in the façade.

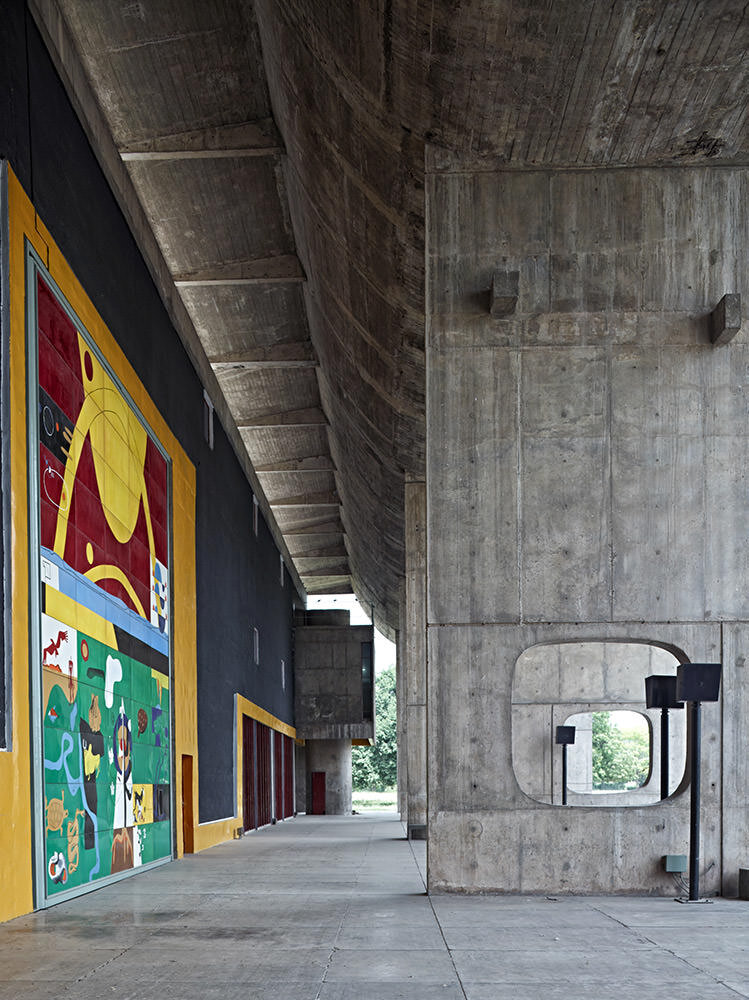

Climate response. Deep shade, thermal mass, sheltered courts and controlled openings respond to intense sun and monsoon conditions. The portico creates a large-scale transition between the Capitol plaza and interior forum.

Shading and daylight. Vertical and horizontal concrete elements form brise-soleil; glazing is recessed; the monumental roof and portico protect principal approaches. Daylight is choreographed through roof forms and controlled façade apertures.

Fabrication, details and lifecycle

Fabrication. Board-marked in-situ concrete required complex formwork for large piers, sculptural roofs, water spouts and repetitive sun-breakers. Surface weathering reveals both the expressive ambition and construction tolerances.

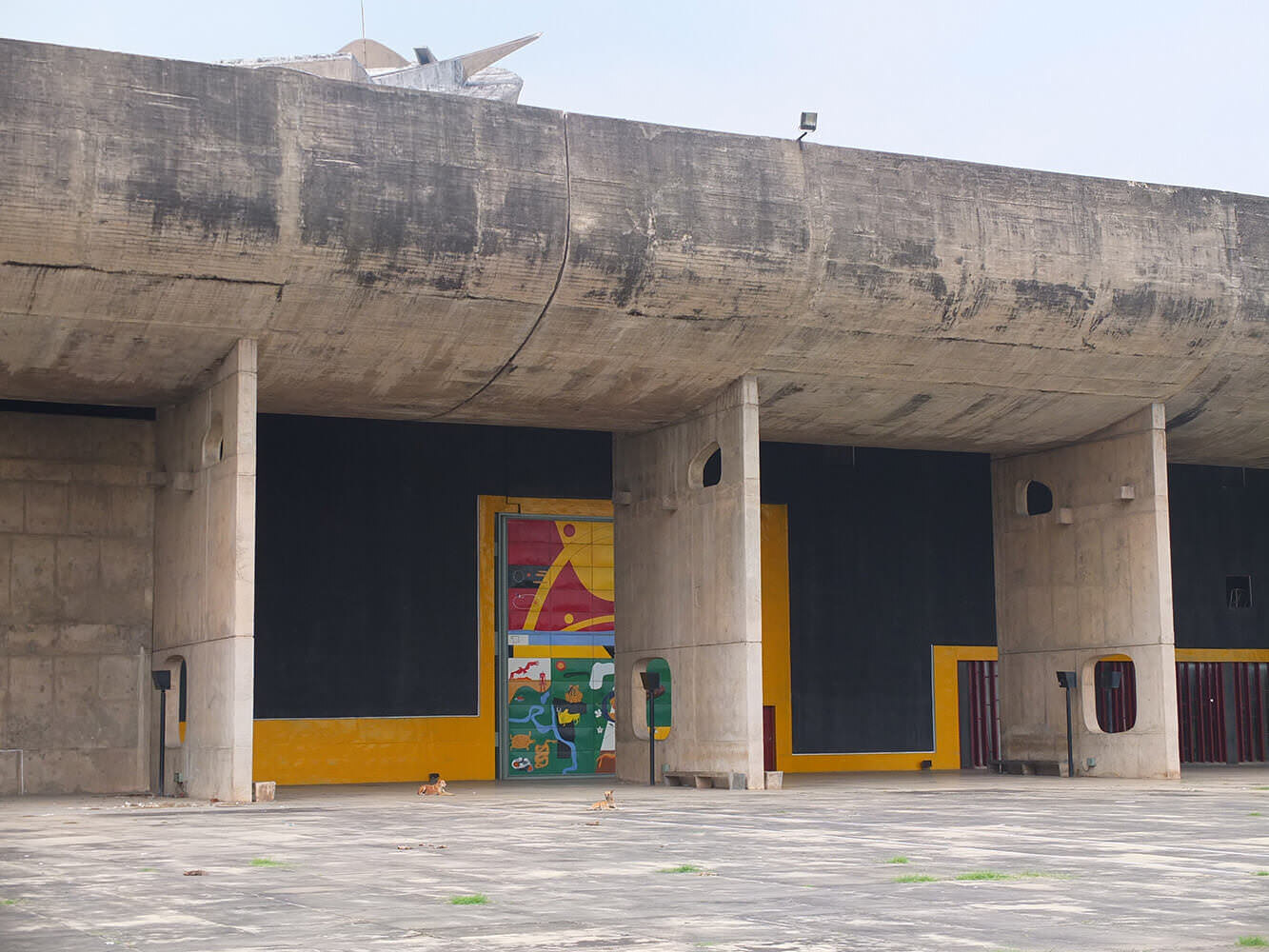

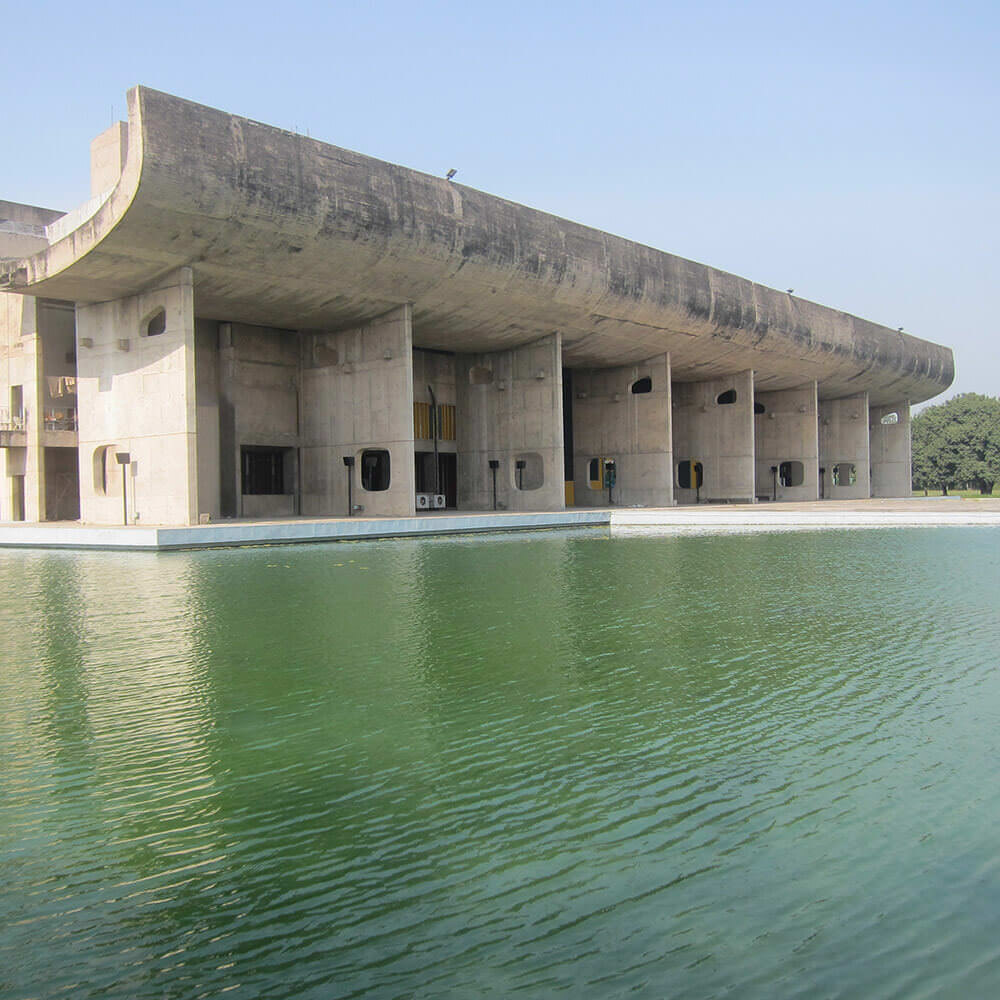

Key details. Eight monumental portico piers, the off-centre enamelled pivot door, deep brise-soleil, dramatic roof silhouettes and rainwater elements define the public image.

Maintenance. Exposed concrete faces carbonation, reinforcement corrosion, cracking, biological staining and water ingress; original finishes and the coloured door require specialist conservation rather than cosmetic resurfacing.

Performance evidence

The passive principles are visually evident, but public sources reviewed do not provide current measured energy, envelope transmittance or air-leakage data. Later service interventions should be assessed separately from original intent.

Significance

A canonical case in which façade, structure and civic symbolism are inseparable, and climate control is achieved through monumental depth rather than applied shading devices.

Cultural and urban reading

Cultural reading. The building translates the democratic assembly into a modern ceremonial order while incorporating astronomical, animal and seasonal imagery in the entrance door and roofscape.

Urban role. It anchors Chandigarh’s Capitol Complex opposite the High Court, operating at the scale of the vast plaza, distant Himalayan horizon and planned governmental precinct.
