National Museum of African American History and Culture

The facade of the National Museum of African American History and Culture (NMAAHC) is one of the most significant 21st-century envelope case studies because it seamlessly integrates cultural symbolism, structural innovation, and passive environmental engineering.

Key Reasons the Facade is Important to Study

Symbolic Tectonics & Material Narrative

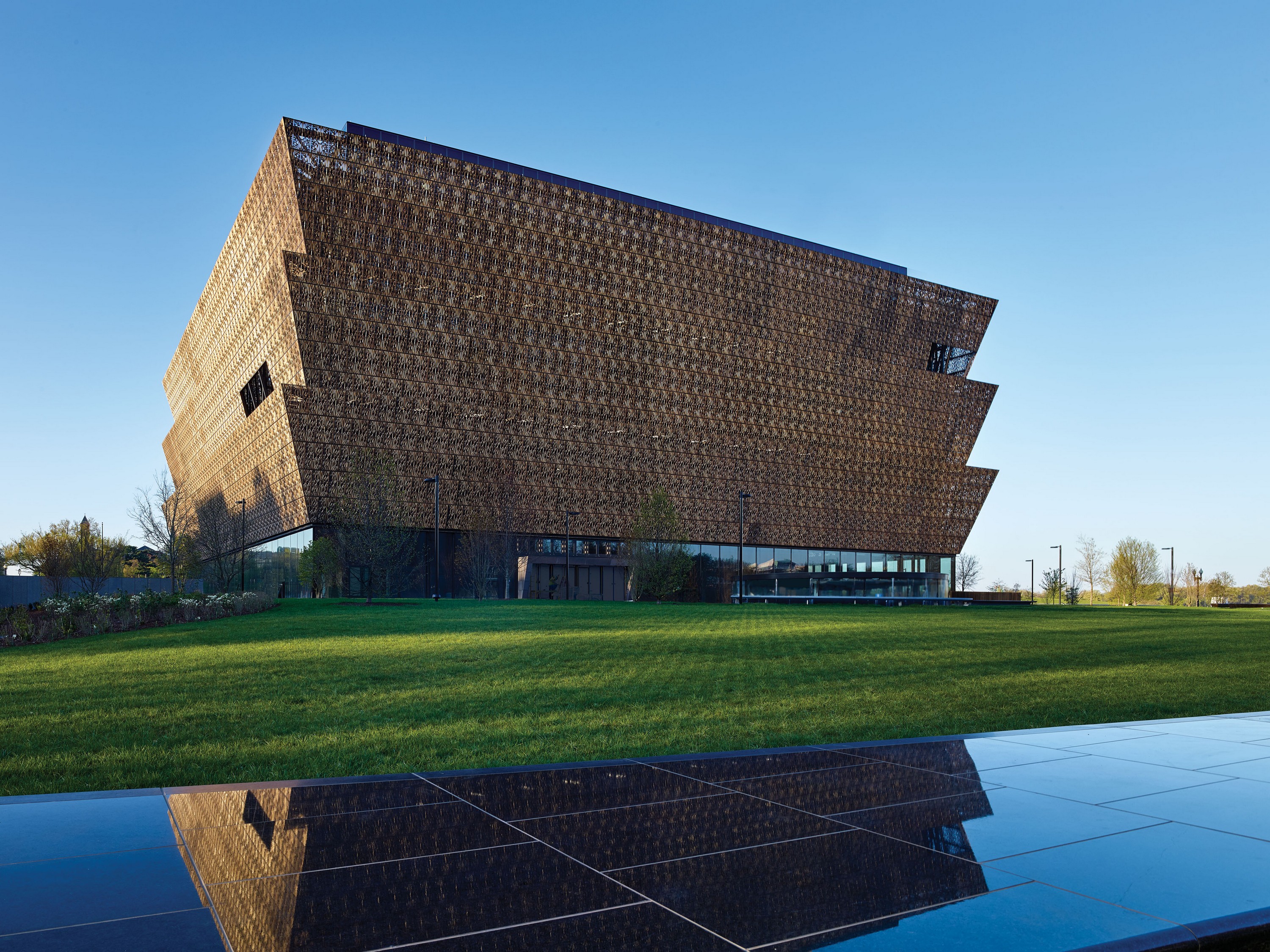

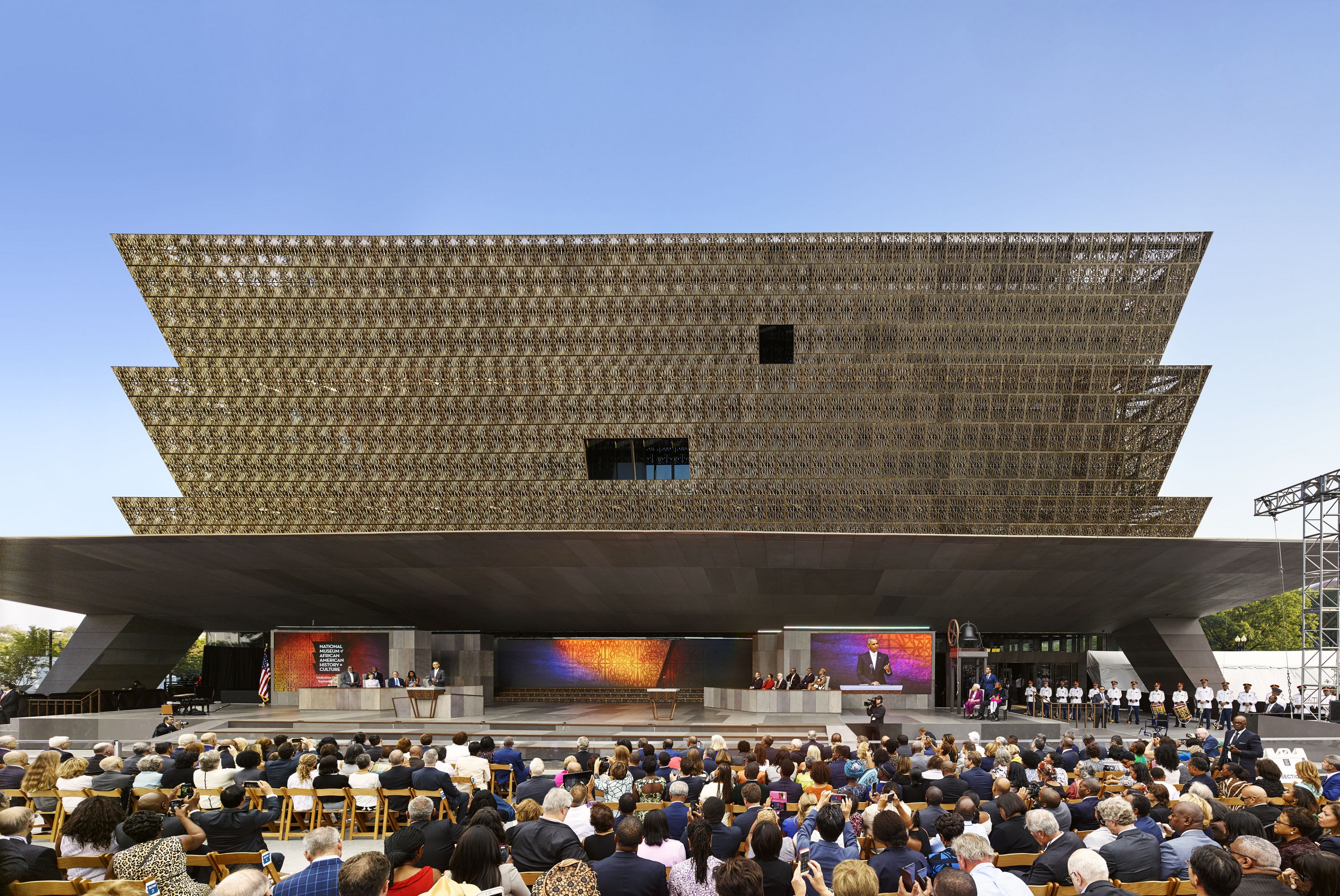

• The "Corona" Form: The distinctive three-tiered inverted pyramid shape is modelled after a traditional three-tiered crown (the Corona) from Yoruban art and sculpture from West Africa, aligning the building's silhouetted volume with African history.

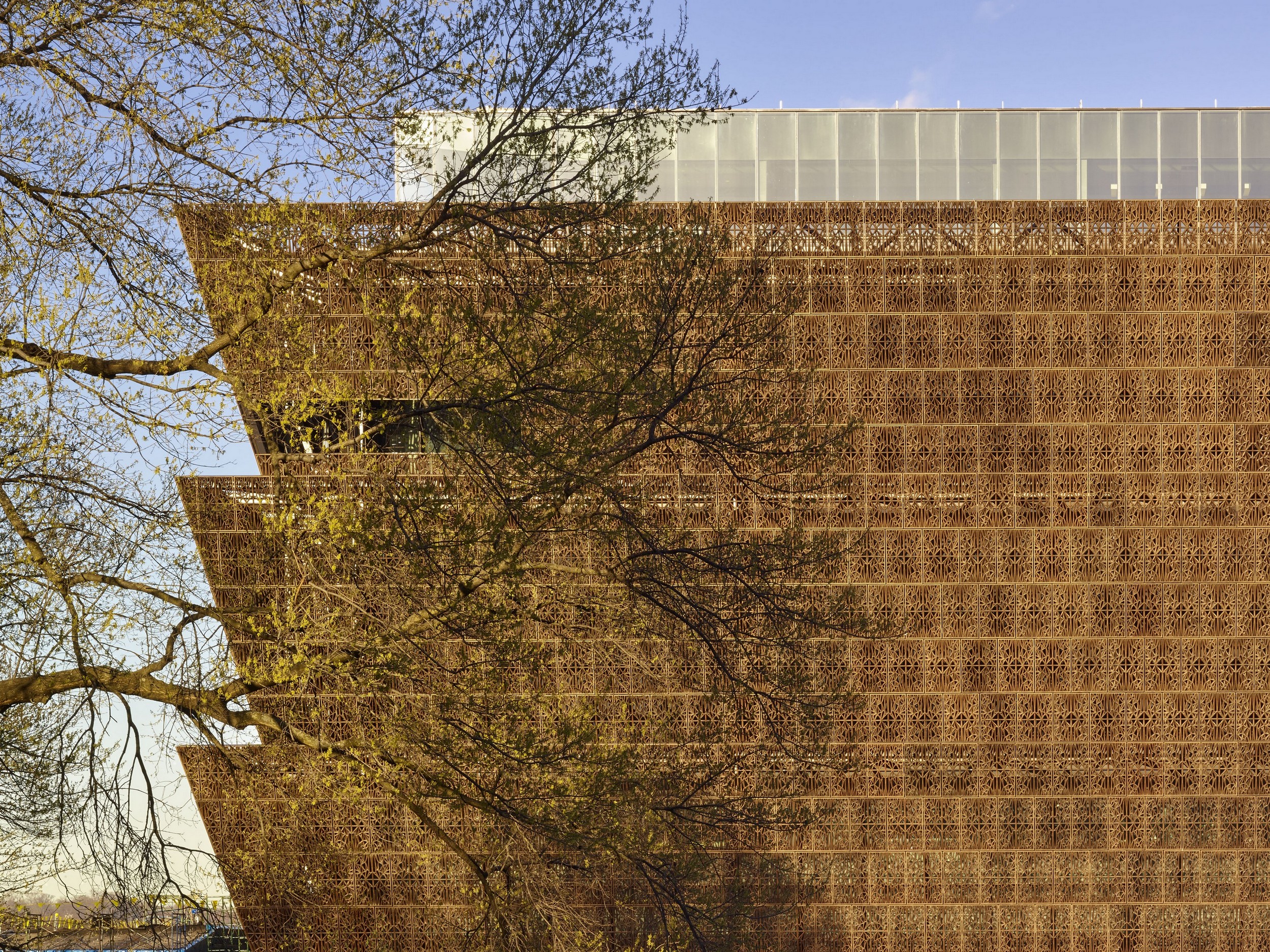

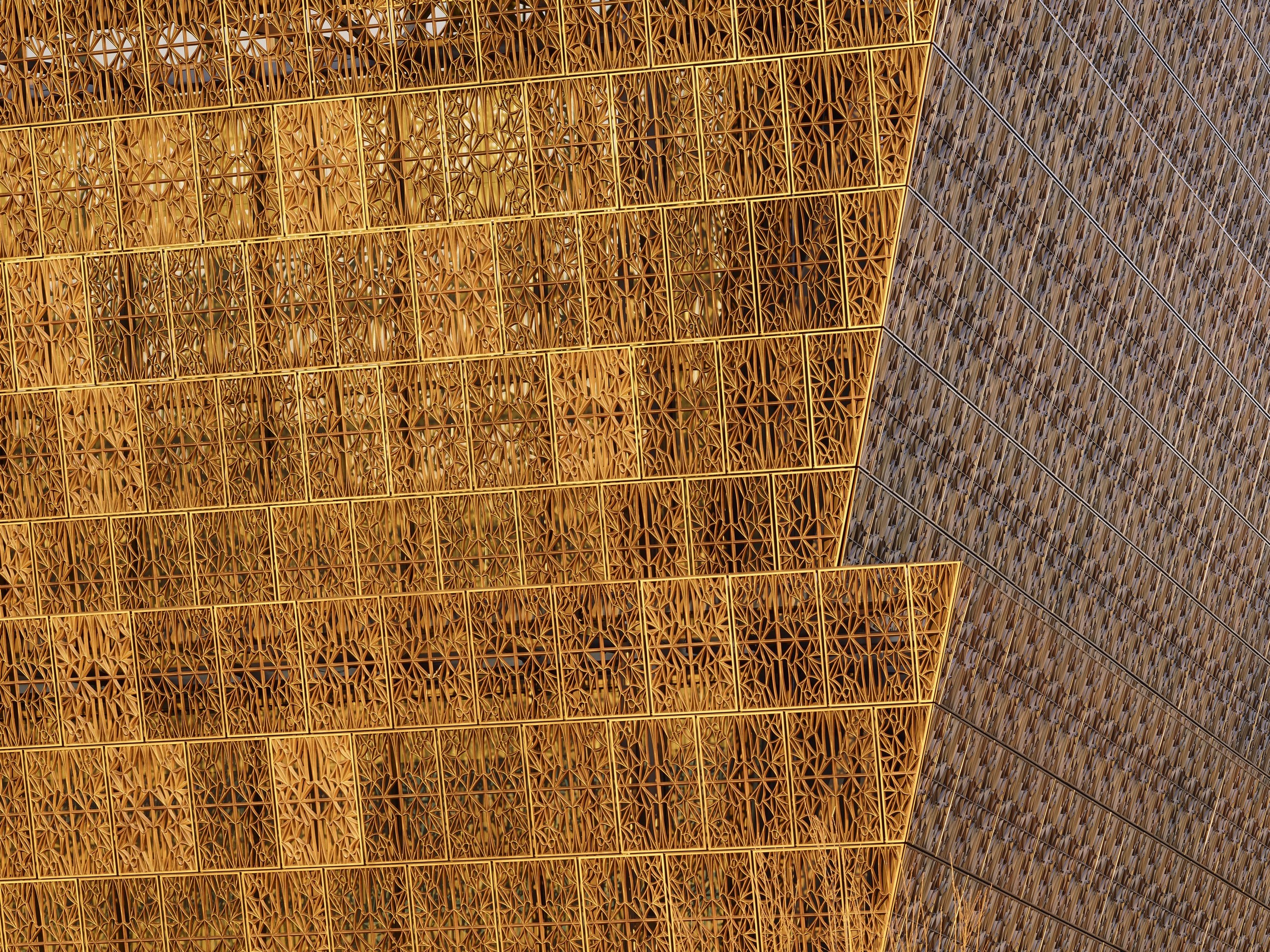

• Tribute to Artisanship: The architectural lattice pattern is a direct reference to historic cast-iron metalwork crafted by enslaved and freed African American blacksmiths and artisans across New Orleans and Charleston, turning the exterior skin into a monumental narrative canvas.

Environmental Performance & Solar Control

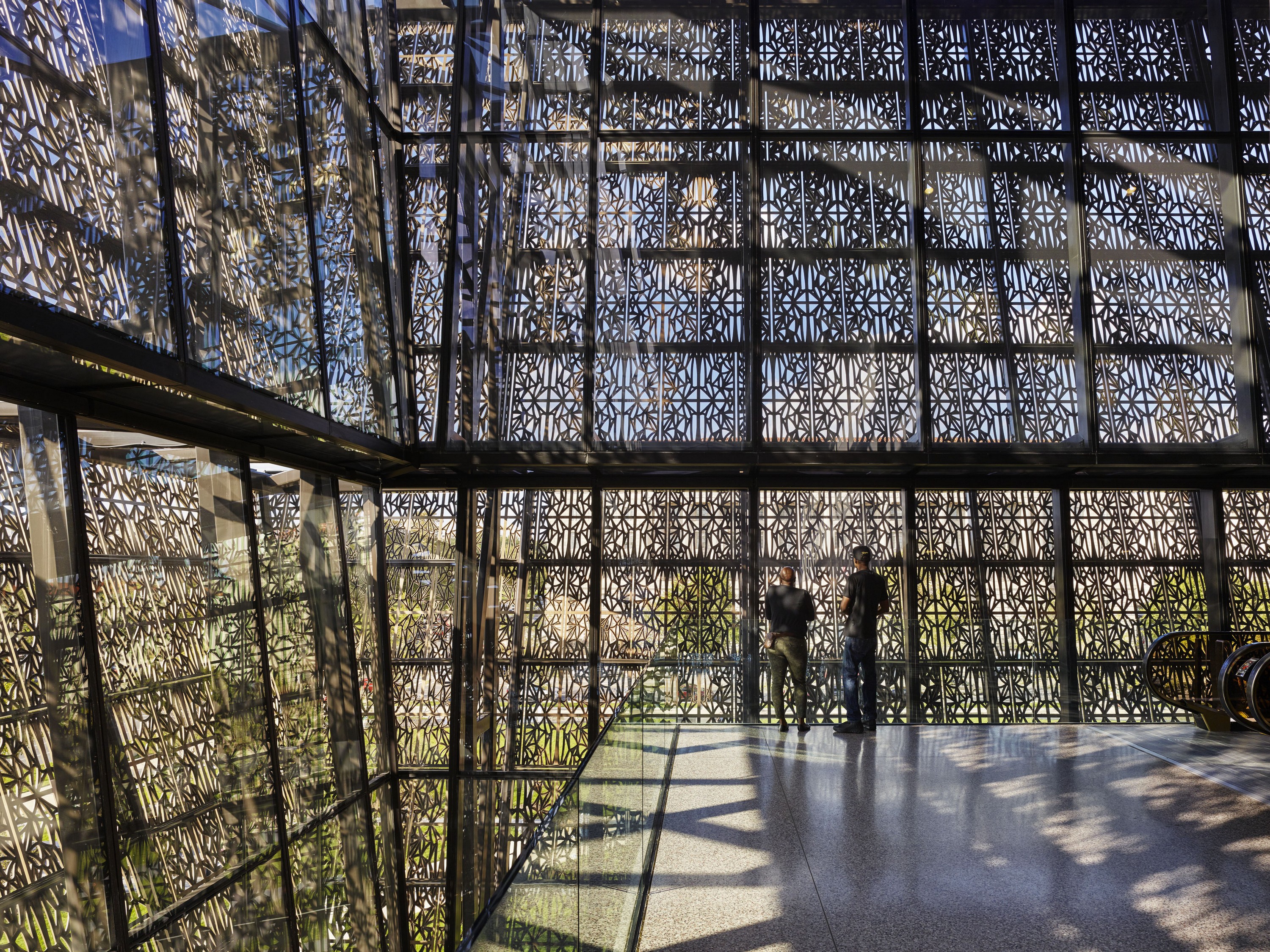

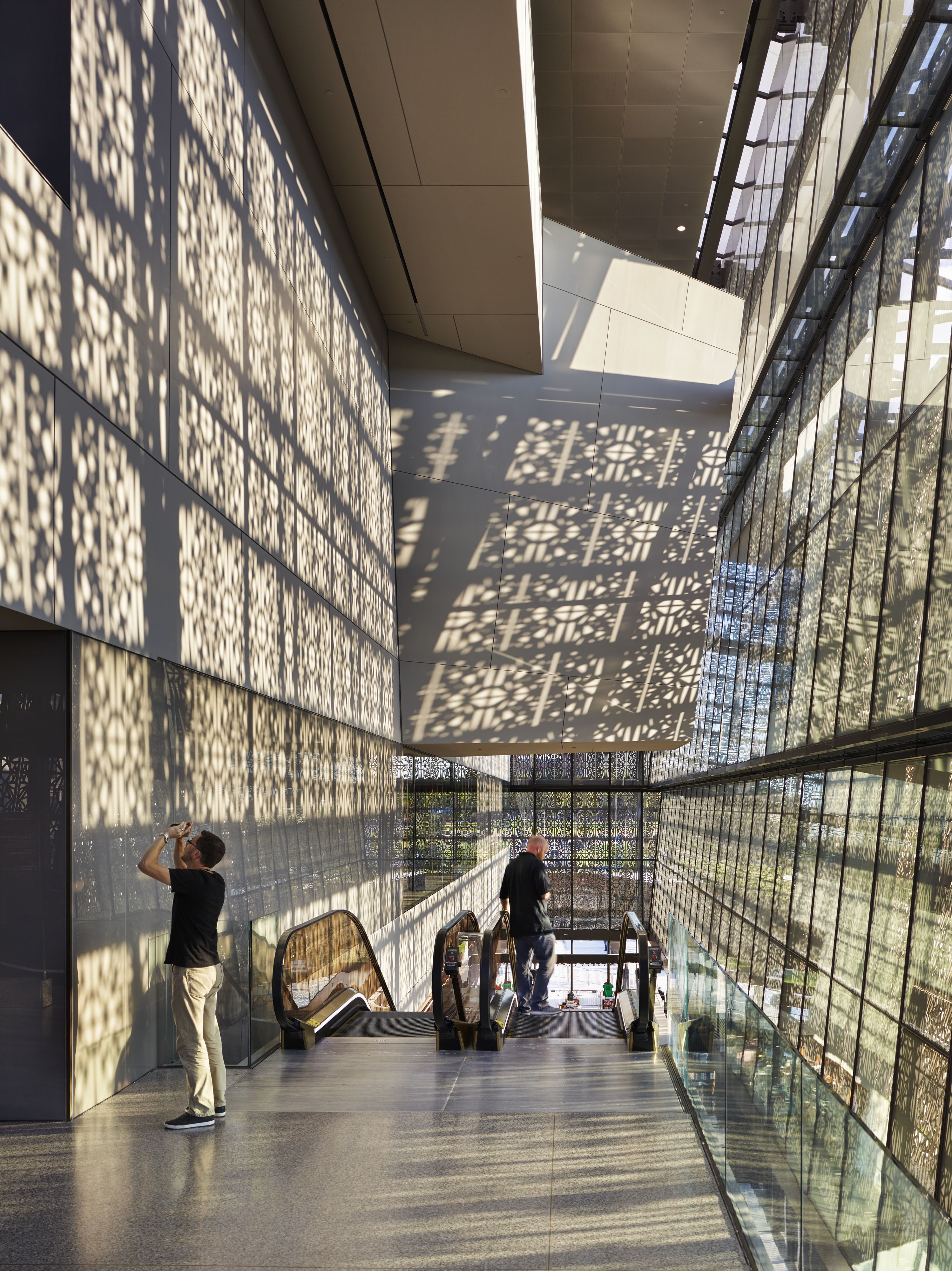

• Micro-Calibrated Transparency: The density and openness of the 3,600 cast-aluminium panels vary across each elevation. This density gradient was algorithmically mapped to respond to solar angles, serving as a passive solar screen (brise-soleil) that minimizes glare and heat gain while optimizing daylighting inside.

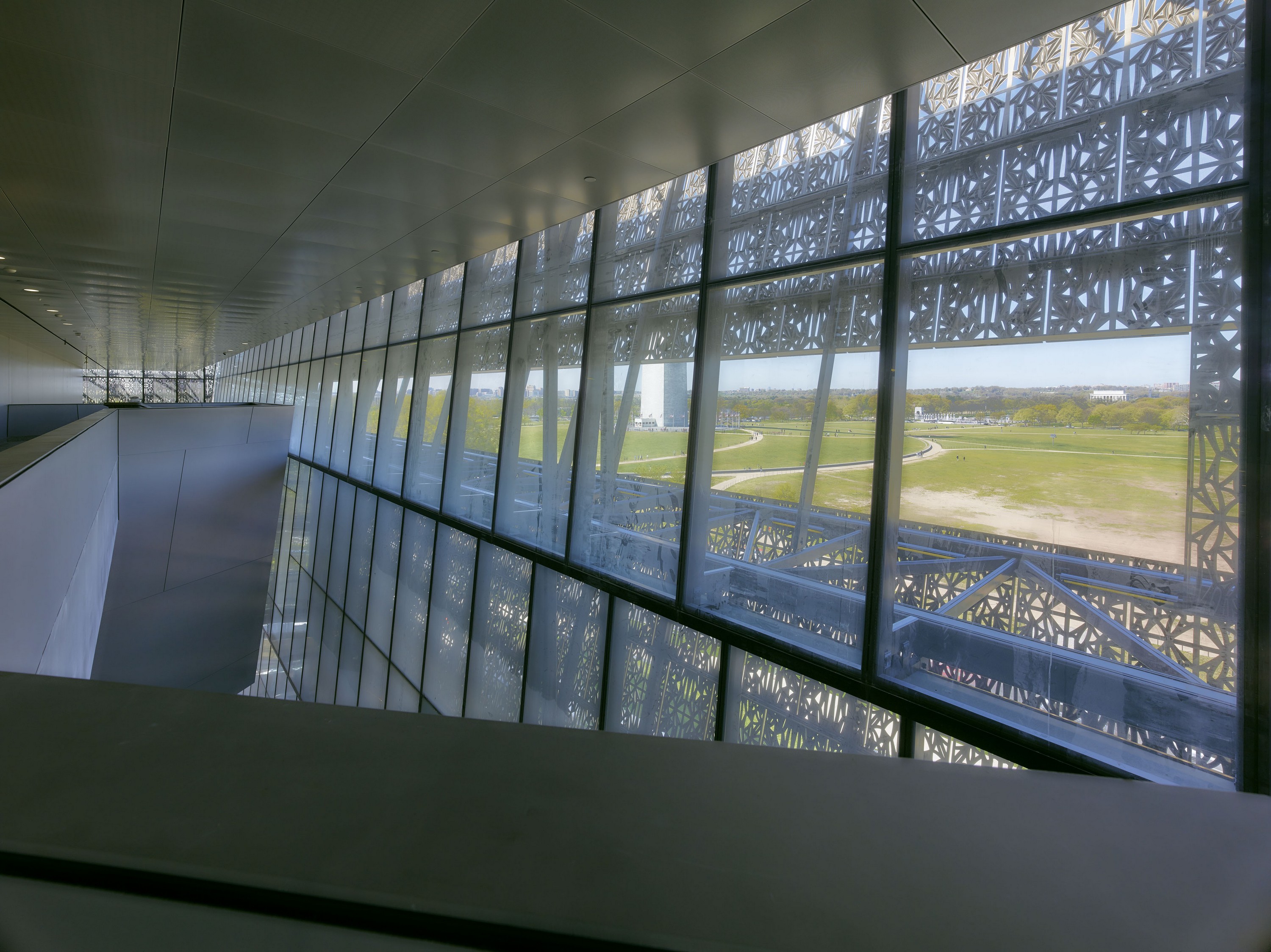

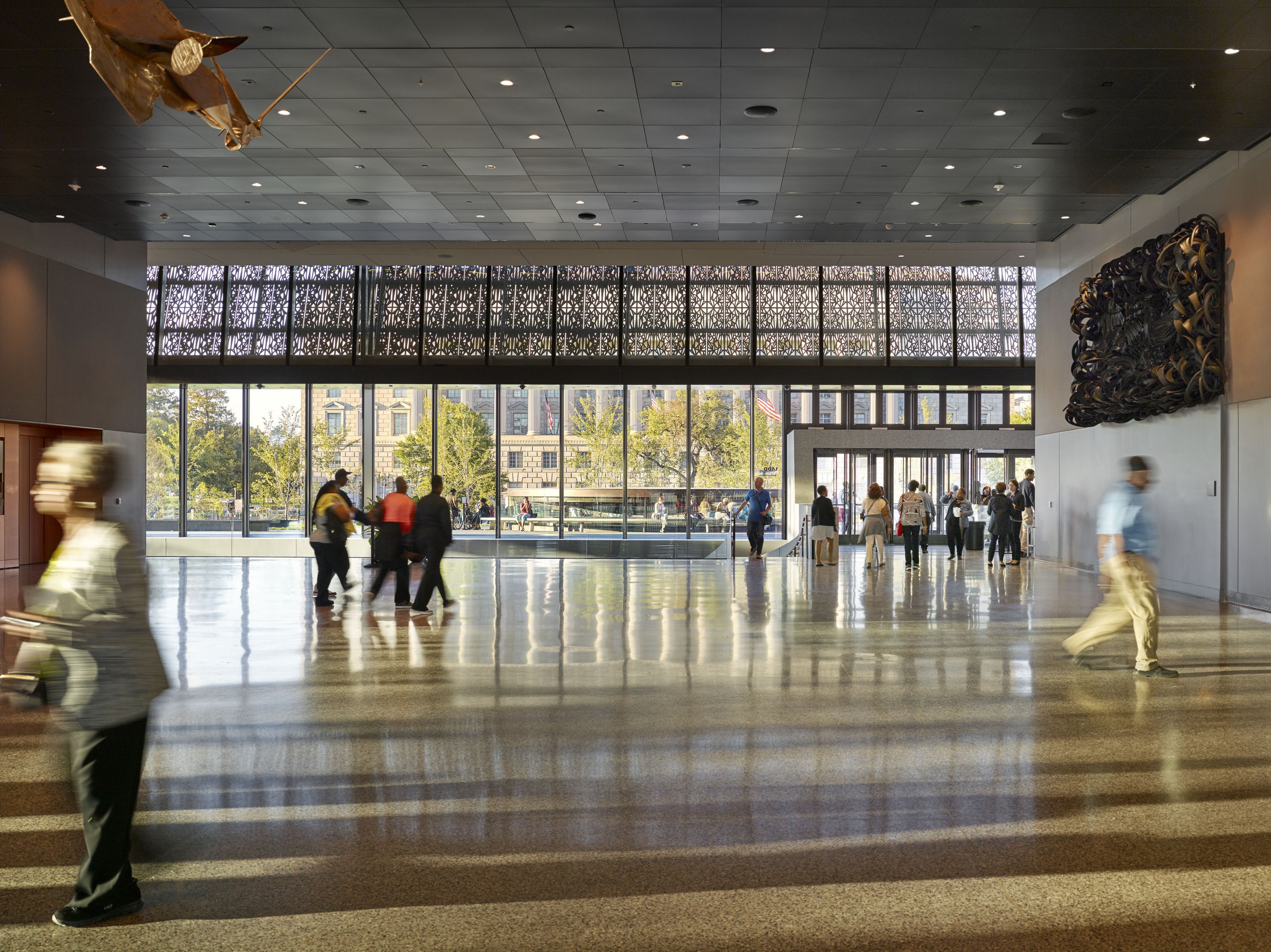

• Triple-Glazed Envelope: Sandwiched behind the metal lattice screen is a high-performance, unitized double-glazed curtain wall that provides a tightly controlled internal climate necessary for museum conservation standards.

Materiality & Dynamic Light Expression

• Engineered Bronze Coating: Real bronze was too heavy for the suspended overhangs and susceptible to uneven weathering over time. The team designed a custom 5-layer bronze-coloured finish over lightweight cast-aluminium, giving the massive structure a warm, tactile patina that dramatically changes colour throughout the day depending on sun position and weather conditions.

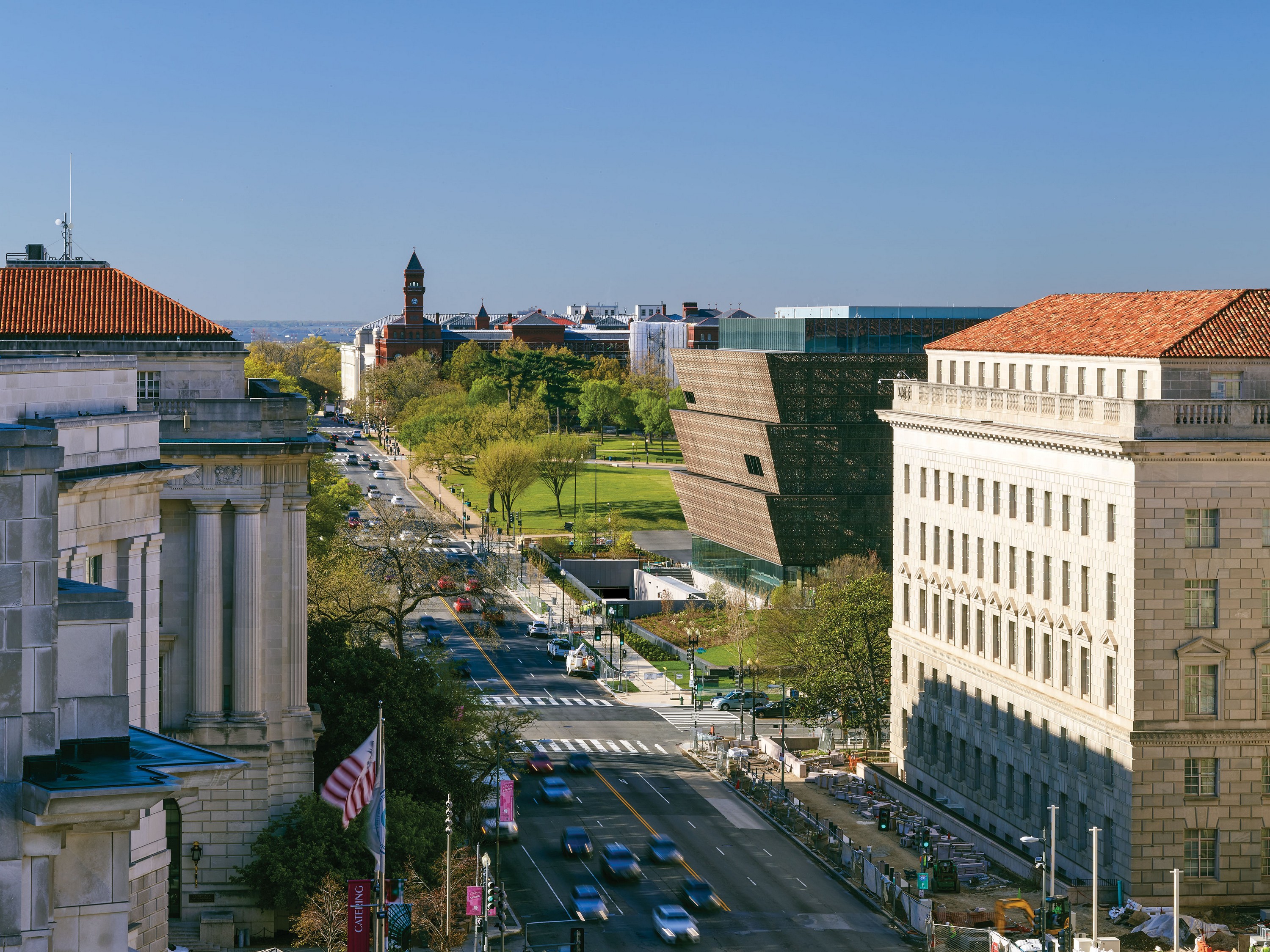

Contextual Dialogue on the National Mall

• Angular Harmony: The 17-degree slope of the tiered Corona panels directly mirrors the precise 17-degree angle of the capstone atop the neighbouring Washington Monument, establishing a formal geometric dialogue with America's core historic axis.
